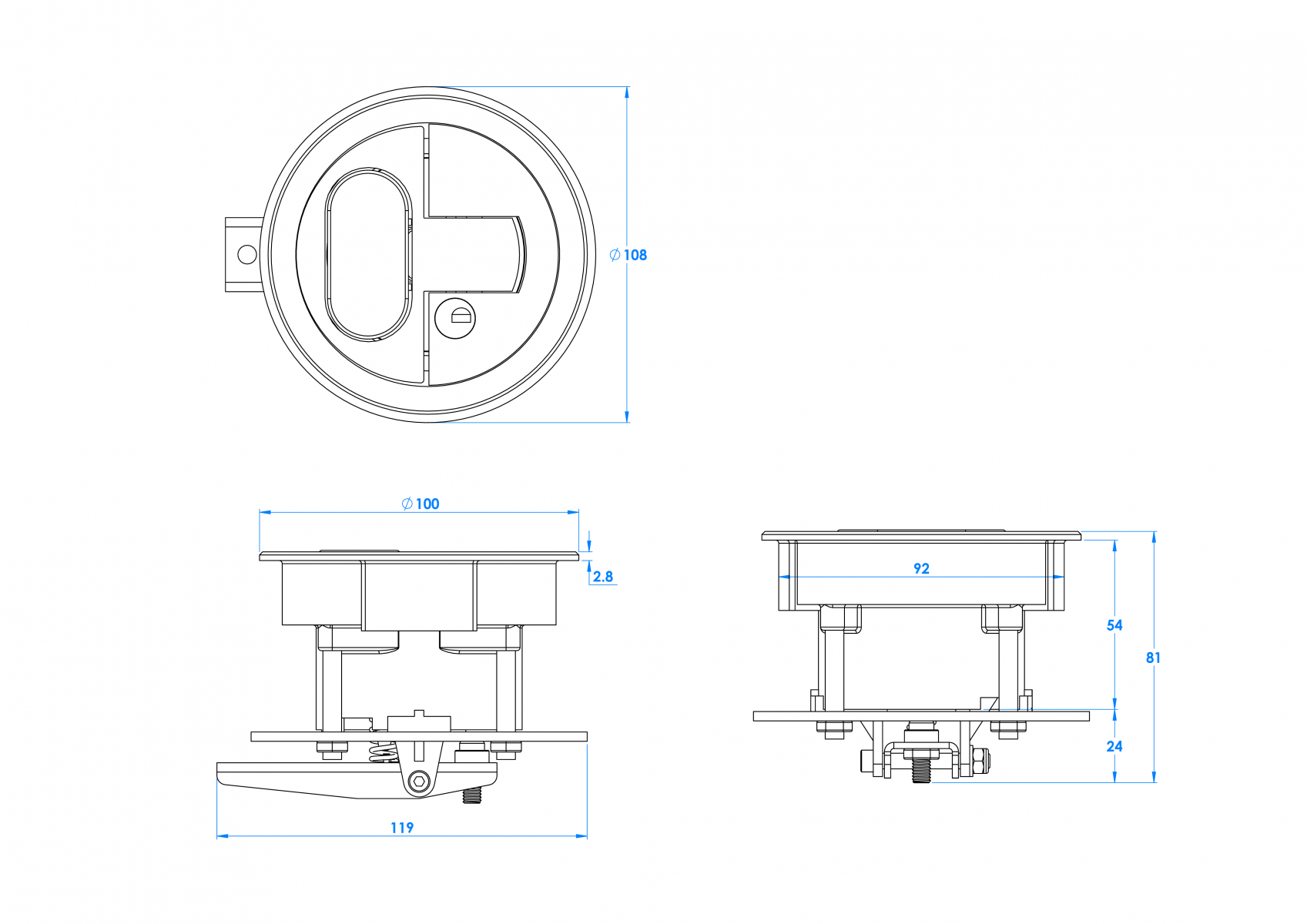

100mm Flush Top Hatch Handle with additional deluxe shutter offering seamless flush appearance. Discreet key locking on top face for added security. Seal compression rate of up to 13mm. Cramping beam rotates on 65mm radius. Suitable for 30-55mm panel thickness. Requires 92mm cutout.
100mm Hatch Handle
Flush Top
Part No. 2115-F
Performs the same function as the smaller 80mm model. Introduced due to the demand for uses on heavier and larger hatches. The system also incorporates an increased diameter lifting handle.
Weight: 1.18kg approx.
Product Features
- 100mm Flush Top Hatch Handle suitable for larger hatches and doors.
- Seal compression rate of up to 13mm.
- Cramping beam rotates on 65mm radius.
- Suitable for 30-55mm panel thickness.
- Requires 92mm cutout.
- Mounting via Monitor Marine’s adjustable jacking-plate system.
100mm Hatch Handle
(Crew Cabin)
Part No. 2115-F-CC
External locking ¼ turn with internal release for crew cabin installation.
Weight: 1.53kg approx.
- 100mm Flush Top Handle with simple spring-loaded sliding bolt to release handle internally.
- Handle can be opened and closed from outside as normal.
- Key lockable from outside.
Customised 100mm Hatch Handles
The above model 2115/F/CC can easily be customised for very thick panels.
Image below illustrates a customised handle.

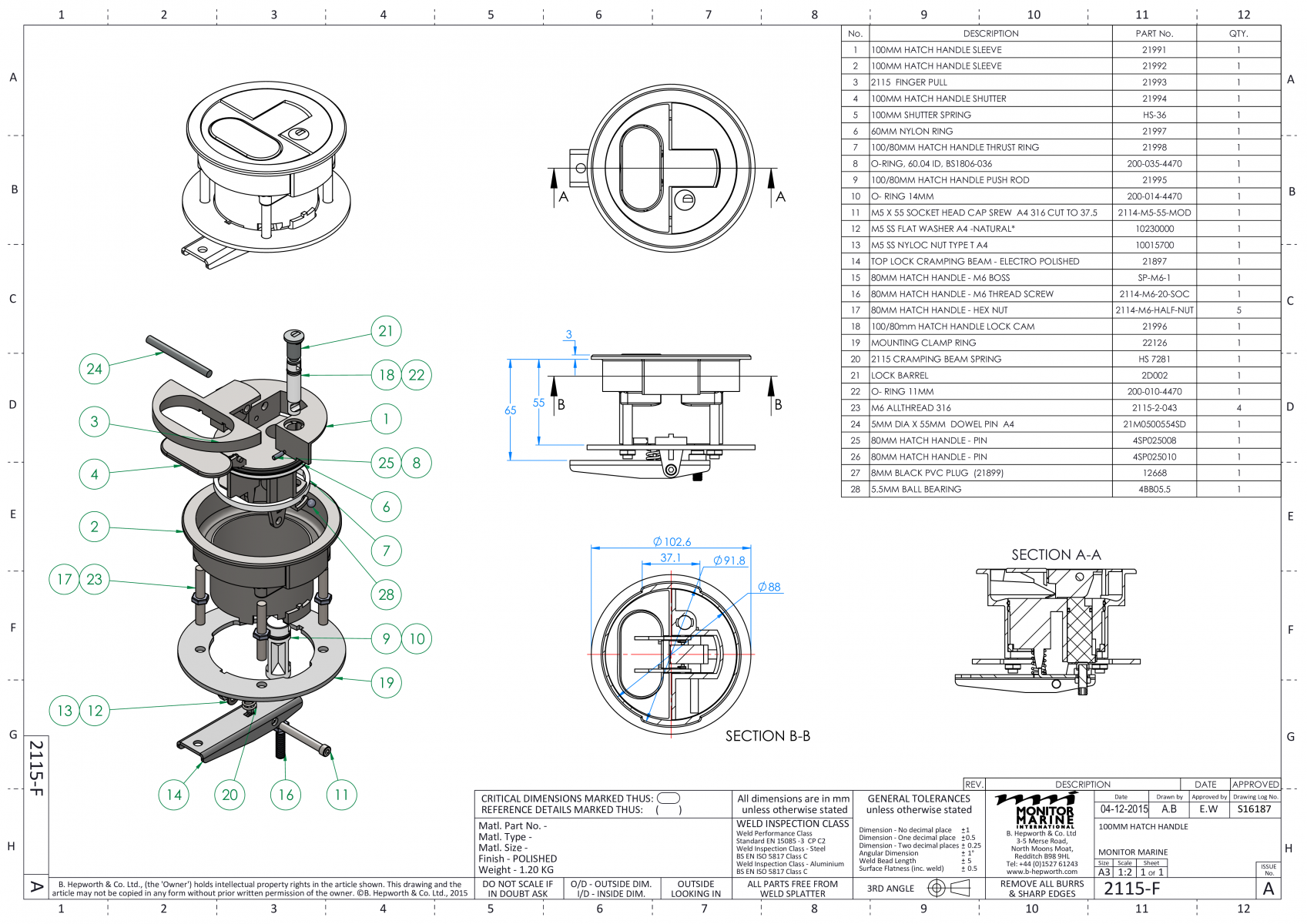

PDF Drawings – Part No. 2115/F
