80mm hatch handle
80mm Hatch Handle Standard Drawing
Monitor Marine Deckware
15022Download

  • 80mm Compression handle with central lock.
  • Rotating Compression Lever swings into place and compresses hatch seal with lever action..
  • Key Lockable.
  • 80mm Deck footprint.
  • Requires 72mm cutout.
  • Suitable for 10-47mm panel thickness.
  • User-adjustable compression rate. Available in deluxe SY mirror polish on request.
15022

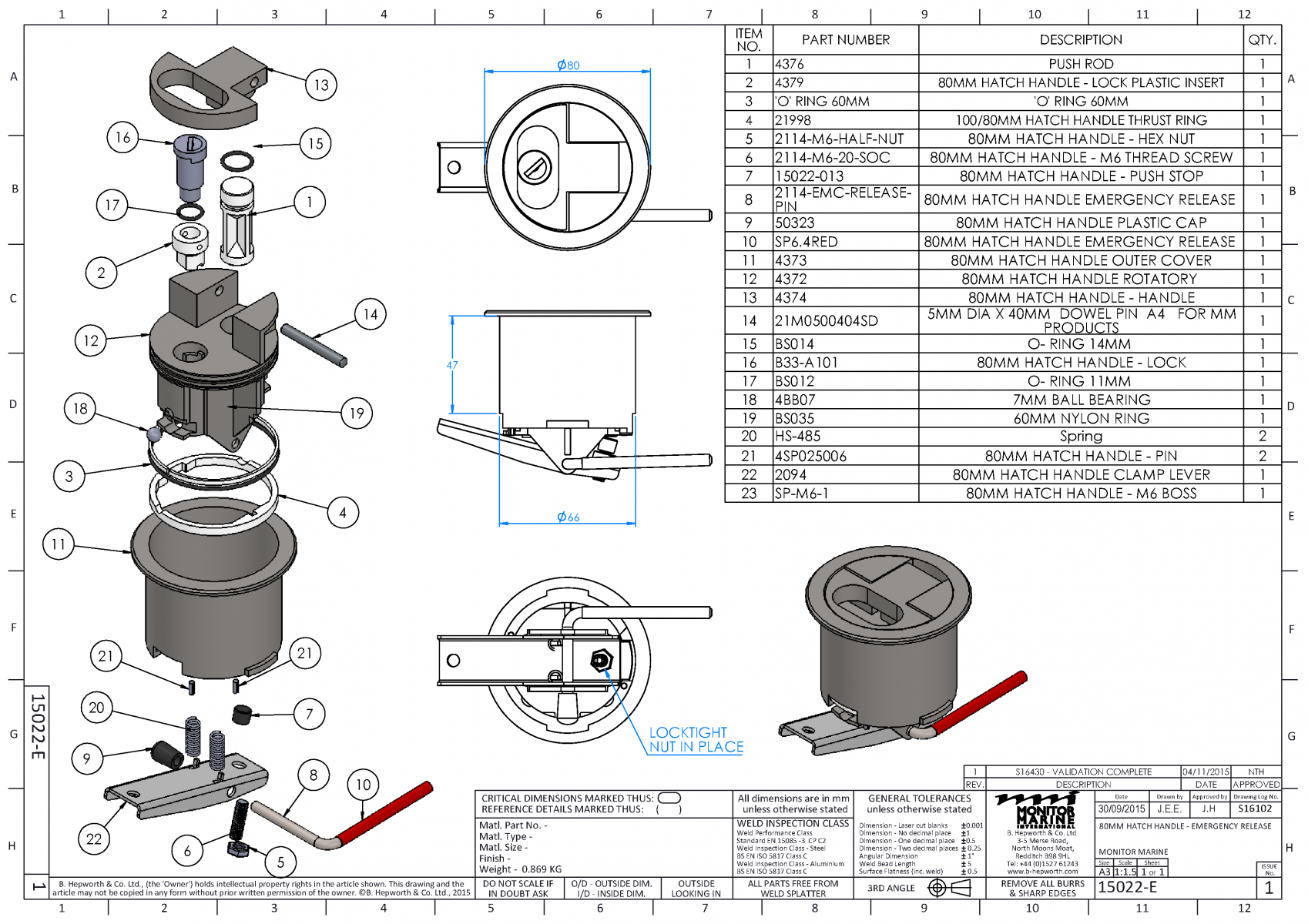

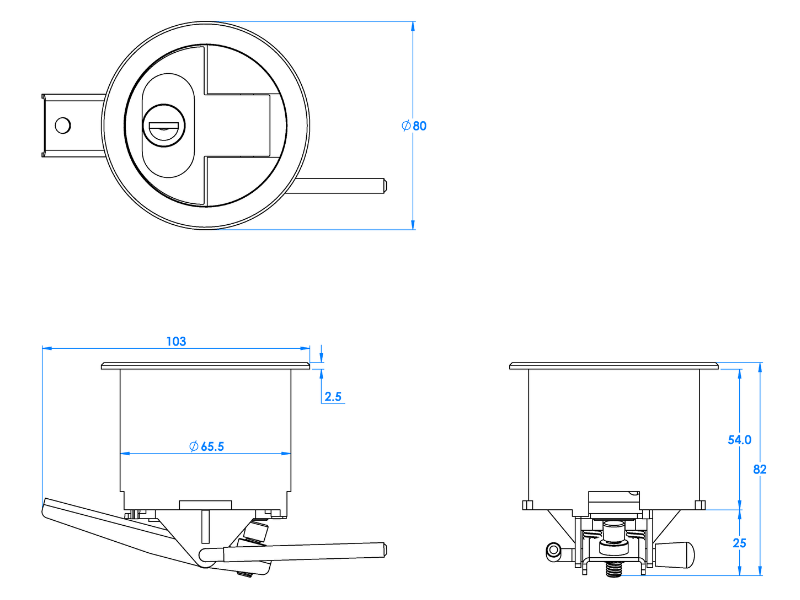

80mm hatch handle Emergency Release
Monitor Marine Deckware
15022-E

  • Mechanism suitable for crew areas.
  • Simple spring-loaded sliding bolt releases locking pin internally.
  • Handle can be opened and closed from outside as normal.
  • Key lockable from outside.
  • Suitable for 10-47mm pamel thickness. Requires 72mm cutout.
15022-E

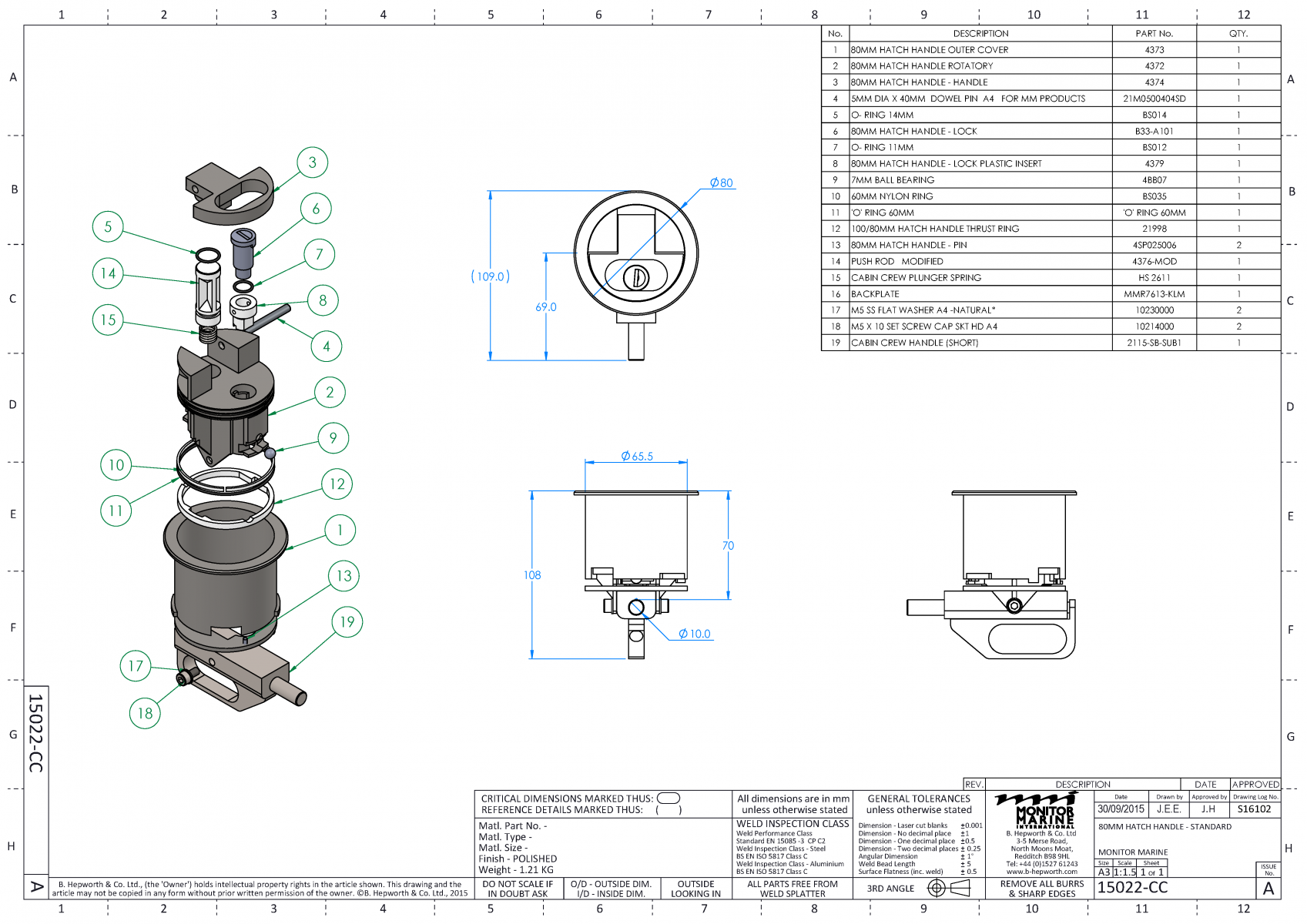

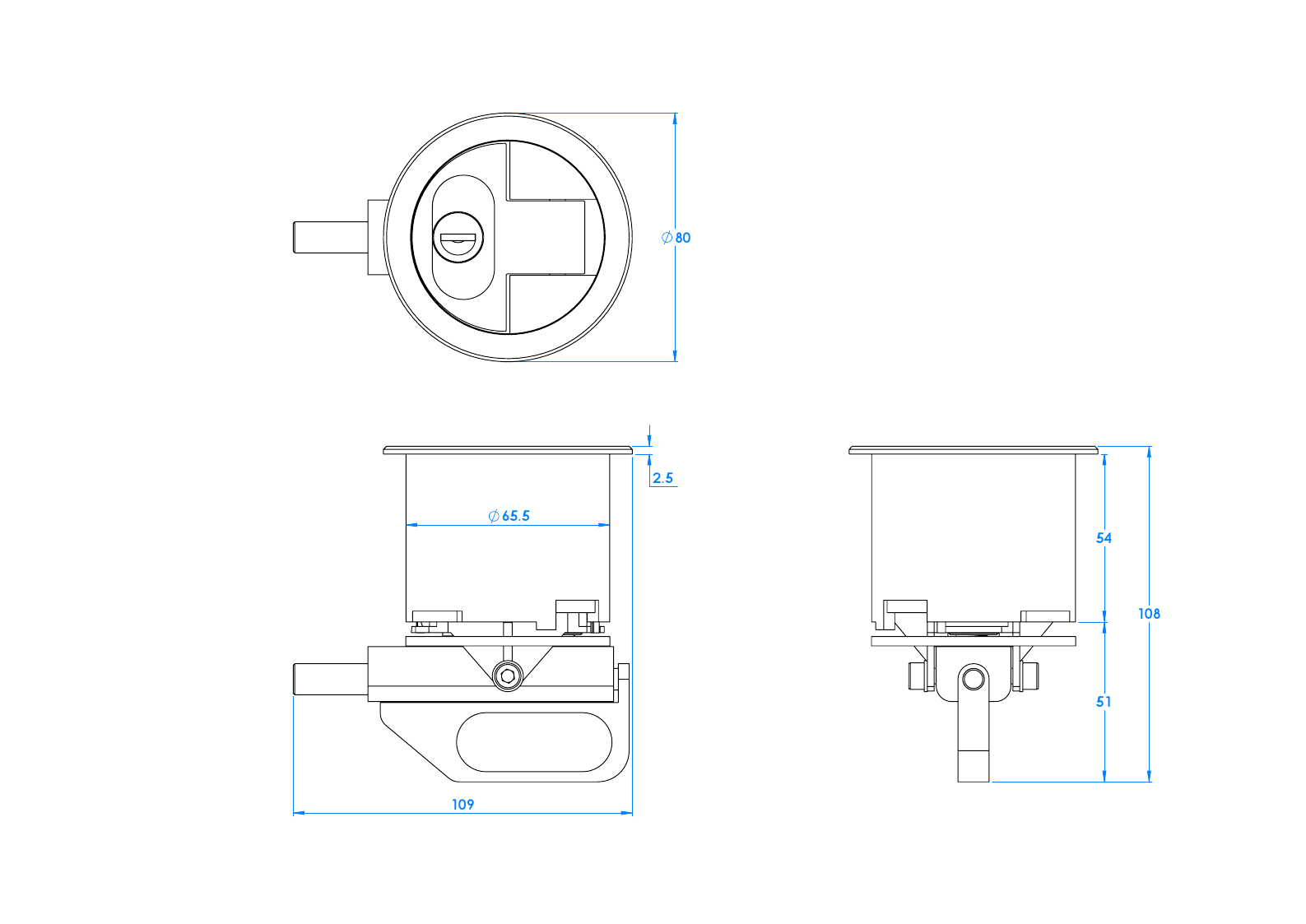

80mm hatch handle (Crew Cabin)
Monitor Marine Deckware

15022-CC

  • 80mm handle with internal Release Mechanism suitable for crew areas.
  • Simple spring-loaded sliding bolt releases locking pin internally.
  • Handle can be opened and closed from outside as normal.
  • Key lockable from outside.
  • Suitable for 10-47mm panel thickness.
  • Requires 72mm cutout.
15022-CC

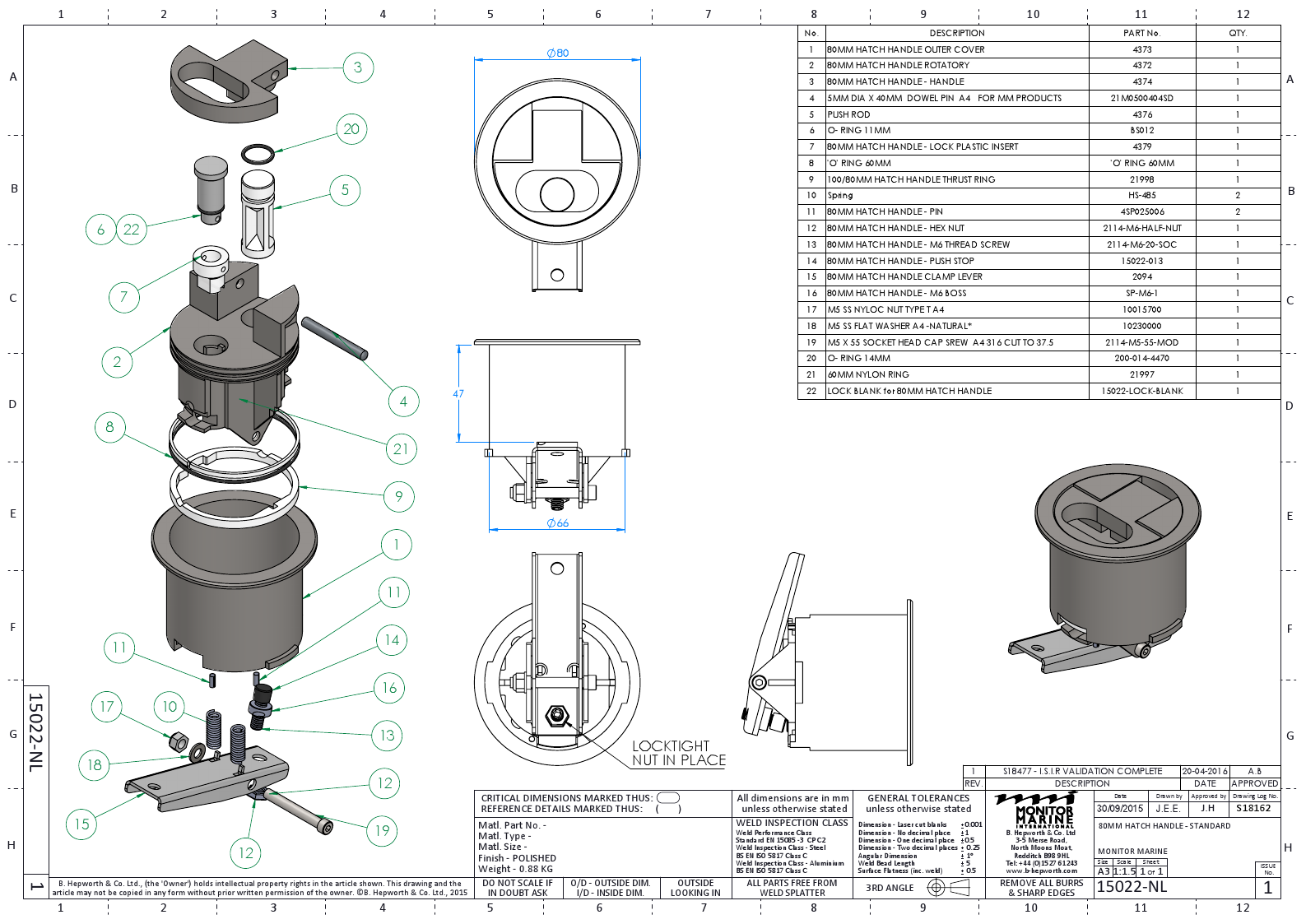

15022-NL

diagram
diagram
15022_80mm_hatch_handle_standardDownload
