80mm Vertical hatch handle with central lock. Rattle-proof and waterproof installation for front face application draws lid to frame. Seal compression rate of 9mm. Suitable for 10-47mm panel thickness. Requires 72mm cutout. Key lockable.


80mm Vertical Hatch Handle
(Standard)
Part No.15025


80mm Vertical Hatch Handle

This handle incorporates a robust, cam-operated compression mechanism to provide a genuinely watertight seal. A simple fingerplate operation produces considerable pressure which forces the hatch seal firmly and uniformly into its sealing band. Unlocking is easily achieved by lifting the fingerplate and turning the handle through 90 degrees. In addition key operated locking is incorporated.

Monitor Marine Deckware

Weight: 1.1kg approx.

Product Features


  • Locking pin rotates on 47mm open radius.
  • Suitable fro 10-47mm panel thickness.


80mm Vertical Hatch Handle
(Long Beam)
Part No. 15025-L


Vertical installation clamping and key locking ΒΌ turn with longer length cramping beam. Ideal for high-speed ribs.

Monitor Marine Deckware

Weight: 1.13kg approx.

  • Additional length locking pin rotates on 72mm radius.
  • Suitable for 10-47mm panel thickness.

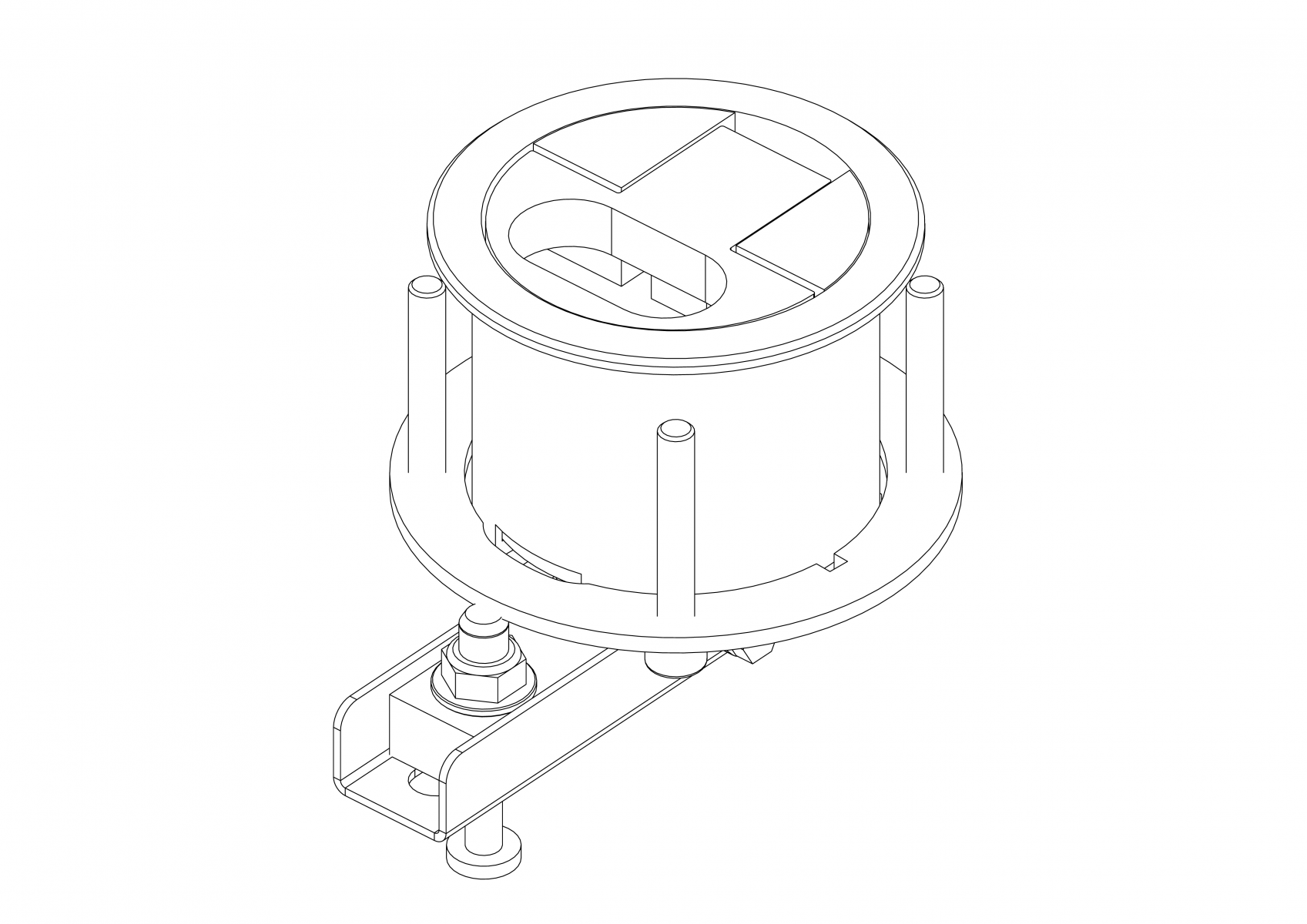

diagram

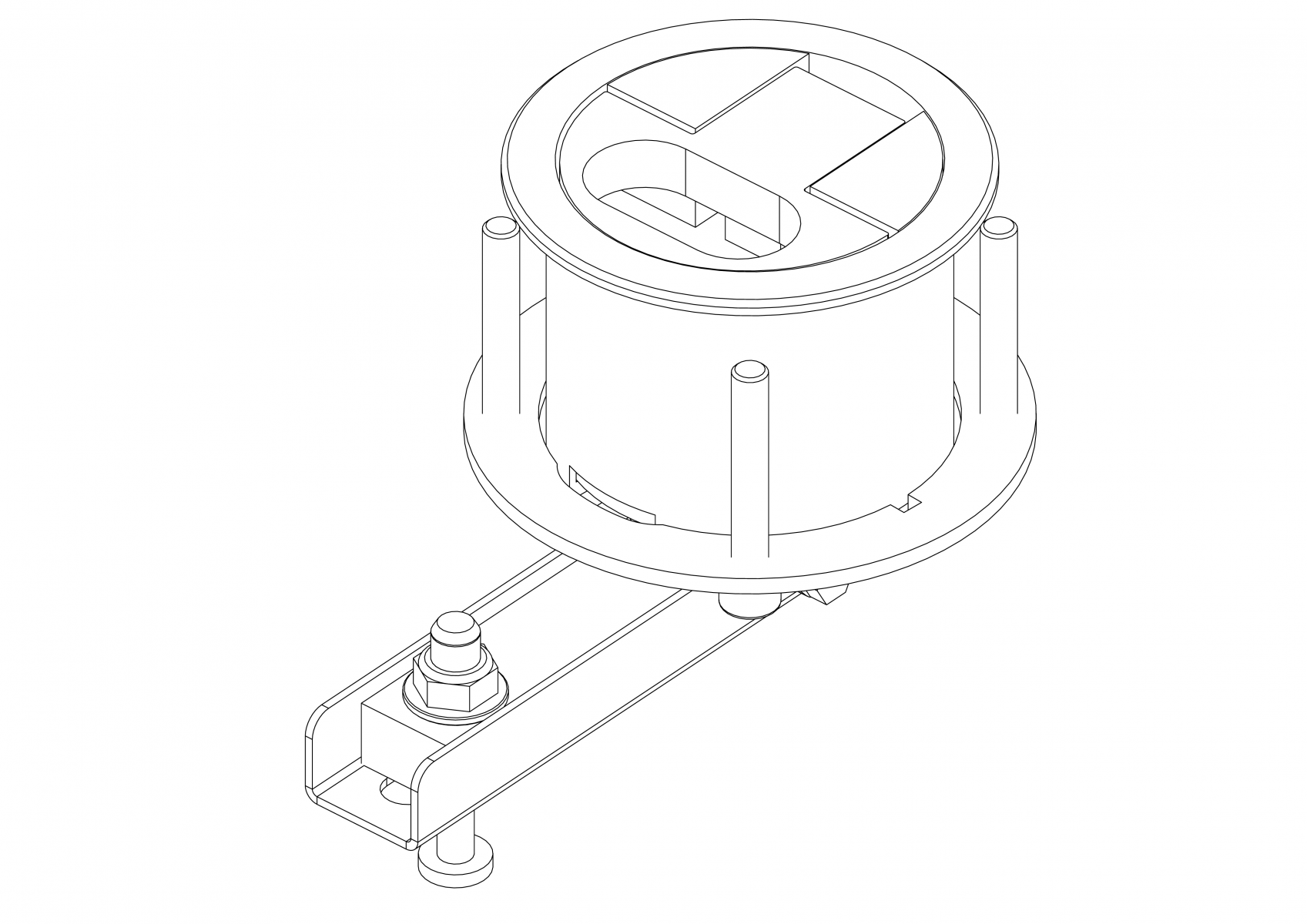

diagram

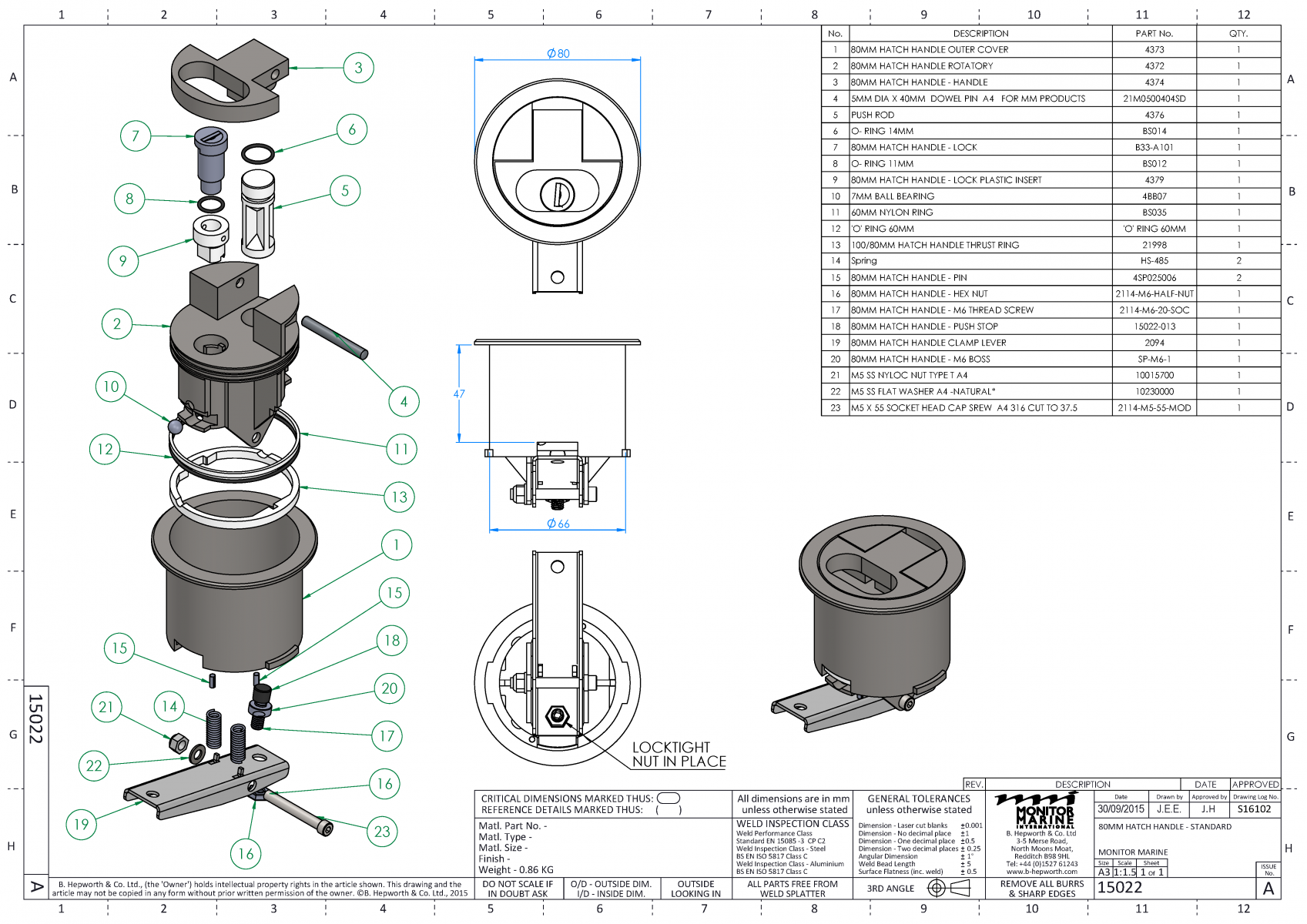

Standard PDF Drawings

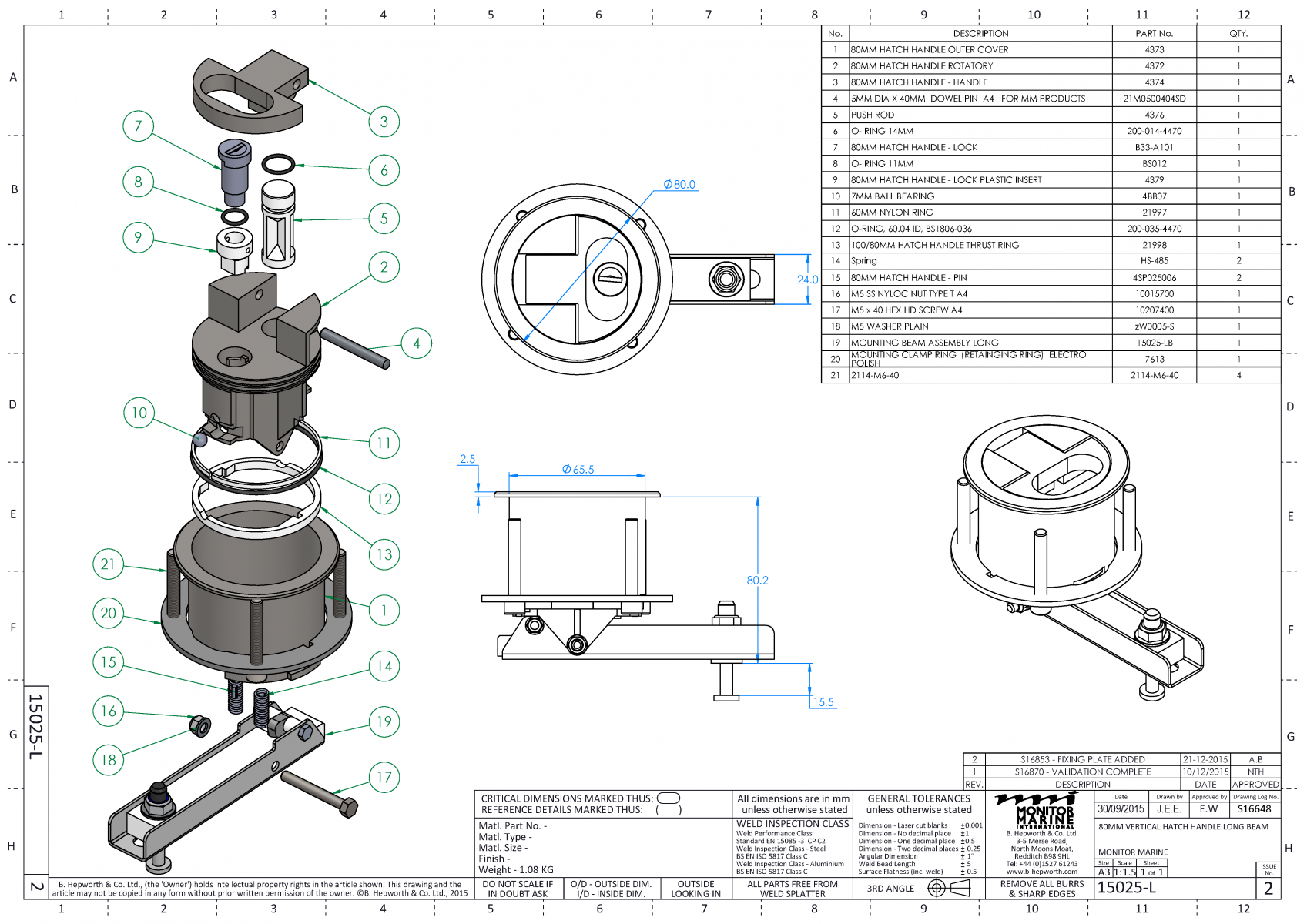

Long Beam PDF Drawings
