Low-profile recessed fittings in two variants. These fittings are designed to fit into a 60mm aperture and are supplied with studs and Nyloc nuts for added security.

70mm Mini Pad Eye
Part No. 11619

The padeye utilises a 316 stainless steel body with a 17-4ph eye giving added strength to provide a secure tie down. Ideal for securing small tenders on the flybridge or bathing platform or within garage areas. Fully flush when not in use.

Weight: 415g approx.

Mini Pad Eye Measurements Monitor Marine

Product Features

  • Recessed folding pad eye or securing point for general use.
  • Rated to 400kgf.
  • These fittings are designed for both vertical and oblique load-cases and can be supplied with test-certificates.

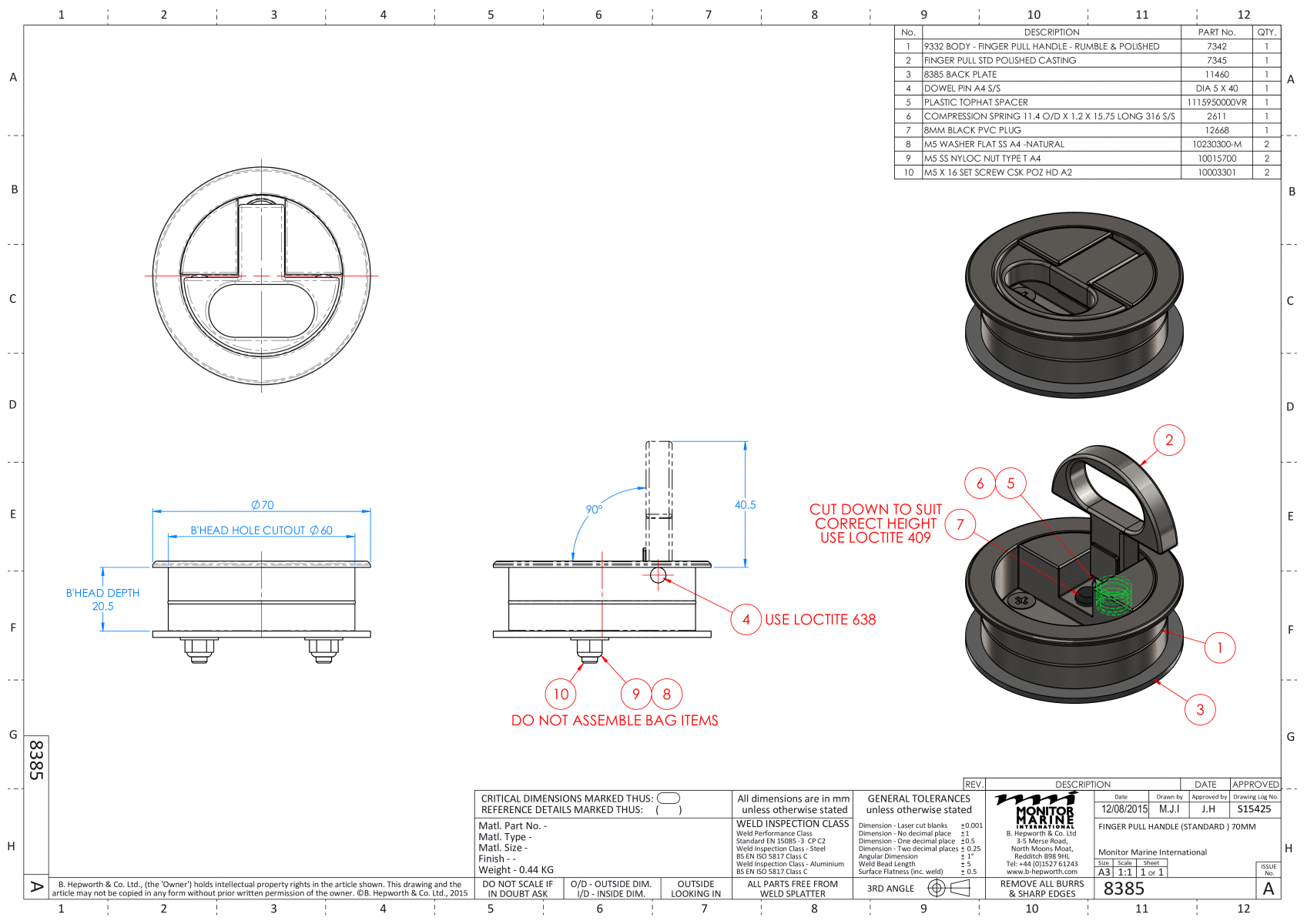

70mm Finger Pull Handle
Part No. 8385

  • 70mm Flush utility handle for a variety of uses as, for example, a lifting handle for floorboards or small hatches.

PDF Drawings
