Superbly executed flush catches for a variety of applications. Simple operation with positive latching action. Optional hex-key lock for added security. Deluxe SY finish available on request.

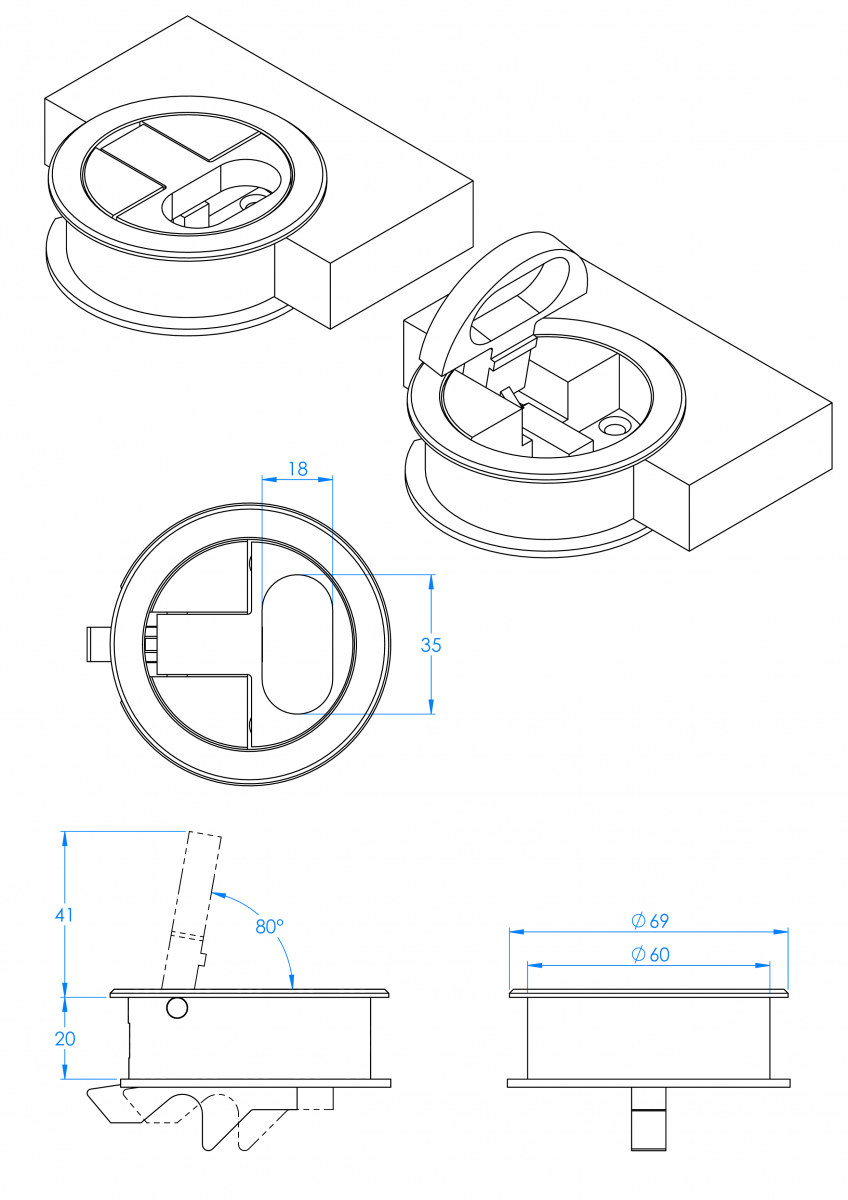

70mm Snapshut Latch
(22mm)
Part No. 8925


Superbly finished product gives a totally positive ‘shut’, ideal for use in horizontal or vertical installation in exterior or interior joinery, overhead lockers and custom furniture.

• 20.5mm catch depth

Weight: 450g approx.

Snapshut 8925

Product Features

  • 70mm Slam-shut latch range.
  • Simple press-to-close catch with either 20mm or 32mm striker-plate offset.
  • Lift lever to open; press hatch closed to secure.
  • Mounts through 60mm hole. 20-30mm bulkhead thickness.
  • Secured with supplied blacking plate and striker plate.
  • Available with or without lock.

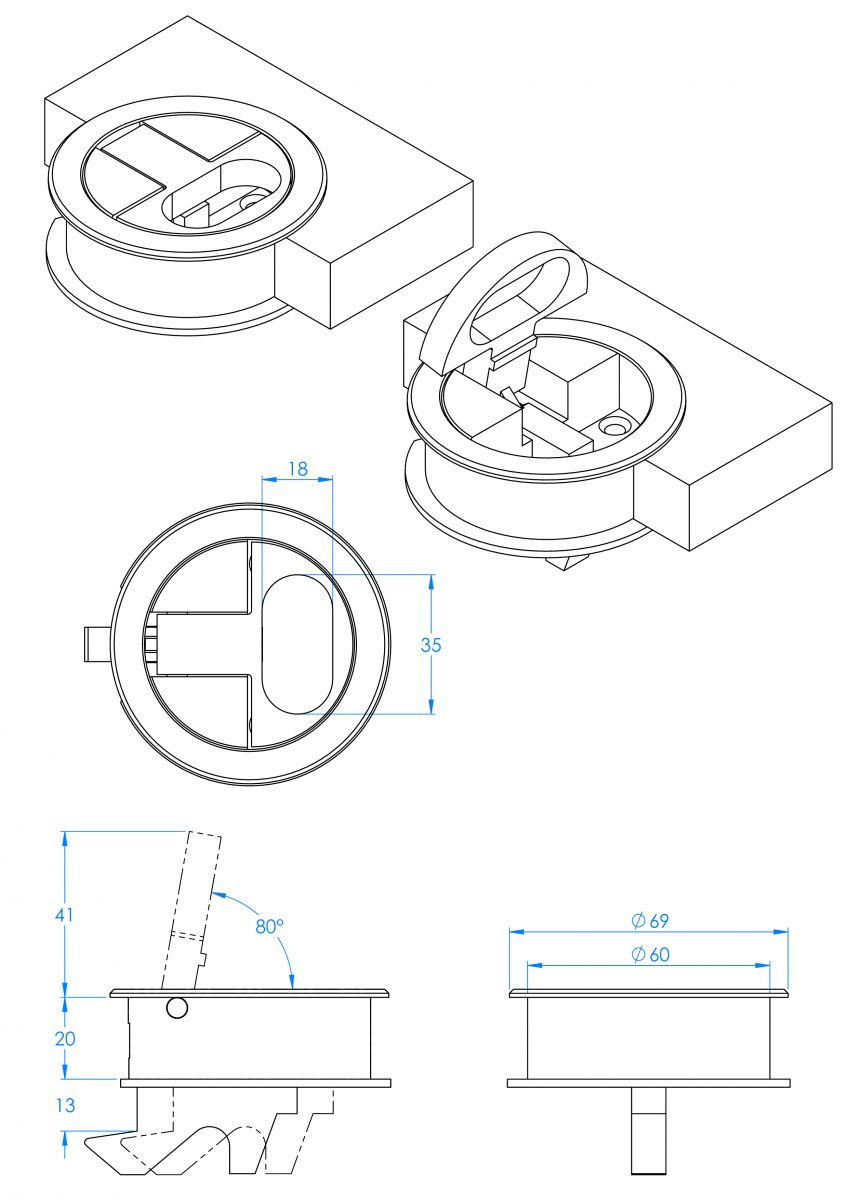

70mm Snapshut Latch
(32mm)
Part No. 8925-DC


Snapshut Latch - deep catch

70mm slam shut latch with deeper catch depth. Secure non locking spring loaded catch. Flush fitting, complete with backplate. 316 stainless steel.

• 32mm catch depth

Weight: 465g approx.

Snapshut 8925

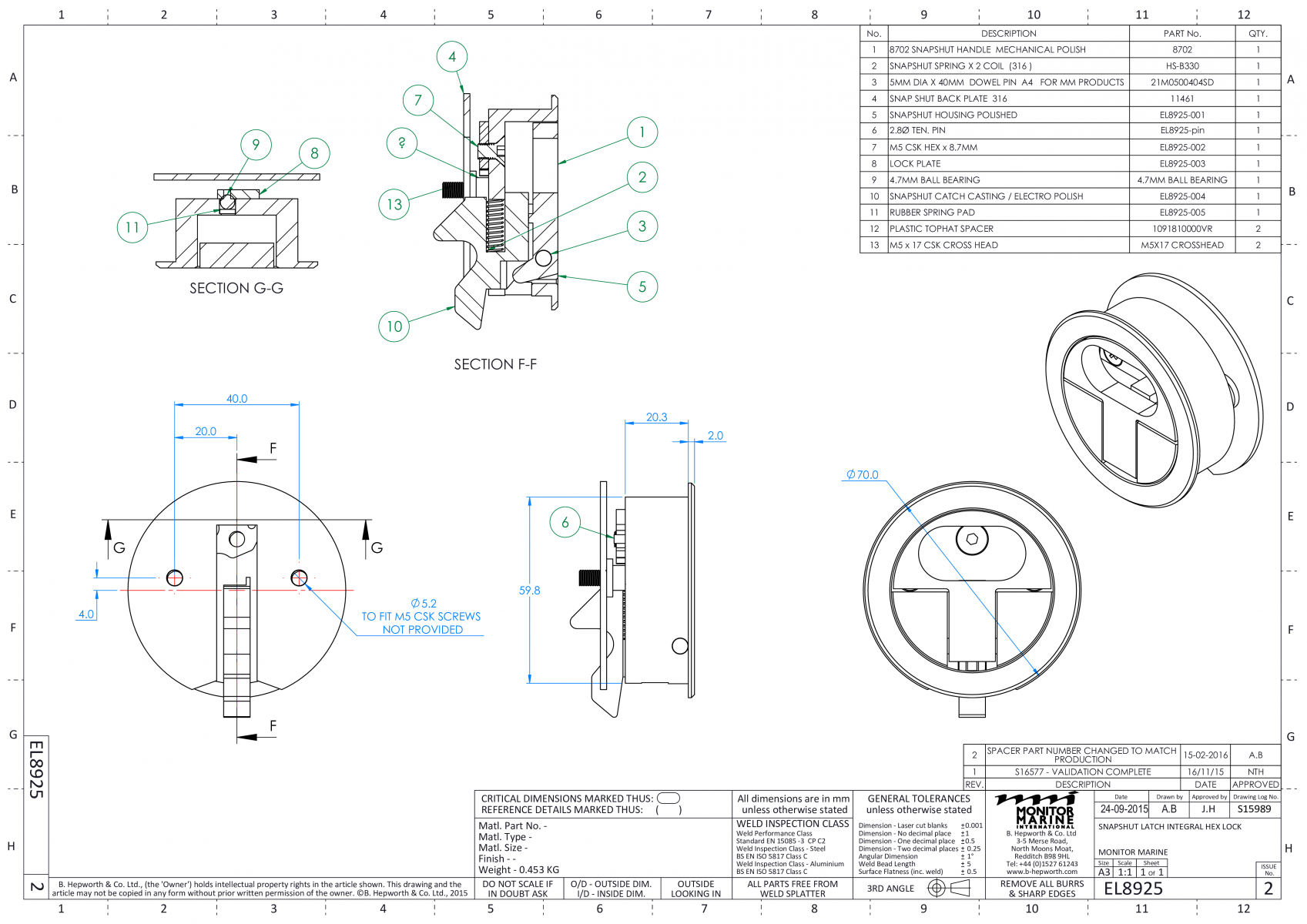

70mm Snapshut Latch Hex Lock
Part No. EL8925


Snapshut Latch (Integral Lock)

70mm slam shut latch with integral hex key lock. Positive click-click action. Flush fitting, complete with backplate and hex key. 316 stainless steel.

• 20.5mm catch depth

Weight: 450g approx.

Snapshut 8925

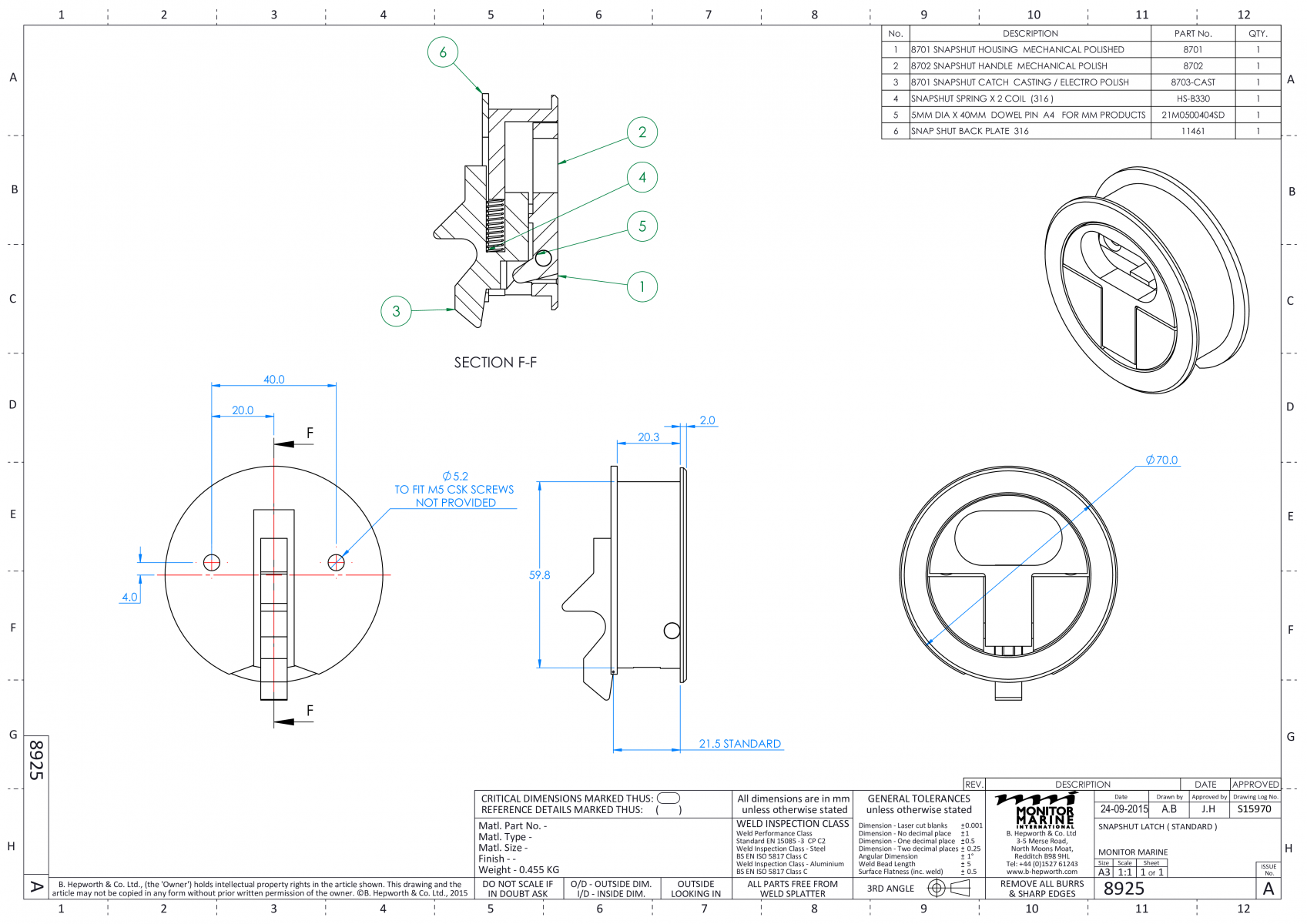

PDF Drawings
